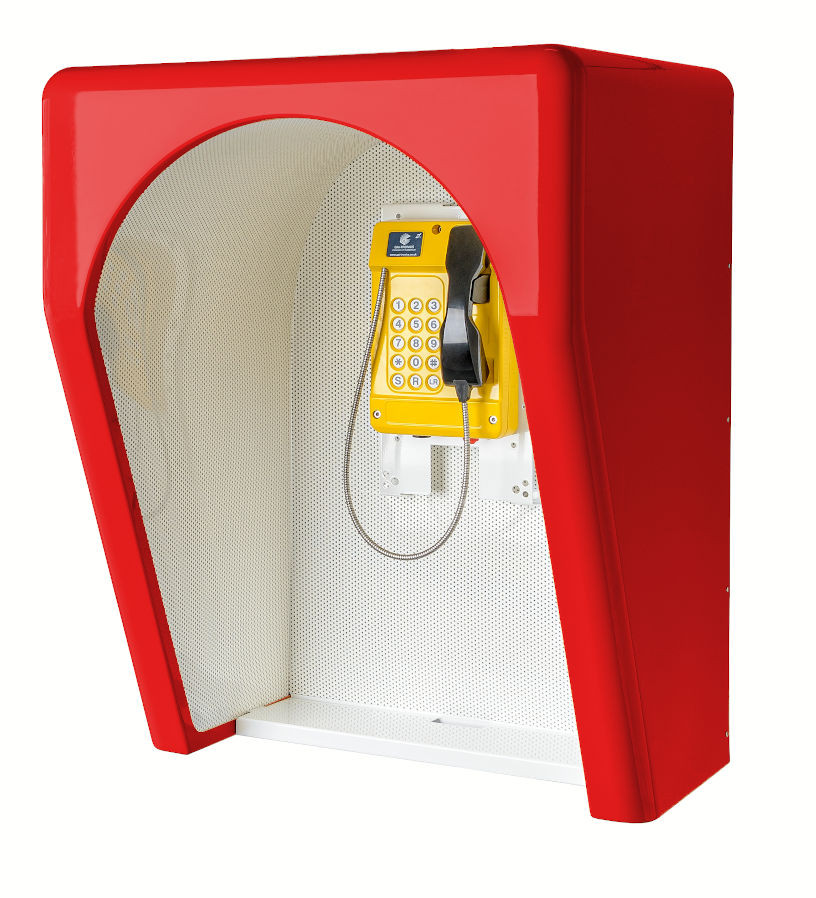

T5000 Marine Acoustic Hood - Post Mountable

Overview

For external or internal use, the T5000 Marine is designed to attain a high level of noise reduction up to 23.9 dB.

Thermoset Composite GRP Moulding manufactured using a certified RTM system to BS476 Part 7 Class II surface spread of flame

Inside the hood's outer shell is a perforated polypropylene lining that houses 60mm non-hygroscopic acoustic insulation.

Fitted to the inner back wall is a stainless steel apparatus plate; beneath this is a 316 stainless steel shelf (165mm deep) with a white powder coat finish and easy cable entry.

The hood is fixed to a post/pole via two 316 Grade Stainless Steel brackets that are secured through the hood's back panel enabling a load of up to 60 kgs to be safely mounted on the gear plate

This product is for the hood & post fixing kit only, it does not include a post

Can be made for wall mounting here

Can be supplied Post Mounted here

Specifications

• Dimensions - H920mm W700mm D610mm
• Weight - Approx 29.5Kg
• Colour - Yellow or Orange as standard, others upon request but subject to minimum quantities

• Outer Shell - GRP

• 316 Stainless Steel Shelf, powder coated white
• Acoustic Insulation - 60mm of Tissue faced non hygroscopic Rockwool (RW3) density 60kg/m3
• Insulation Liner - White Perforated Polypropylene
• Apparatus plate - 316 Grade Stainless Steel powder coated white
• Mounting Brackets - 316 Grade Stainless Steel
• Boxed Dimensions - 980 x 800 x 680mm
• Boxed Weight - Approx 35kg

*Our products are subject to a continuous improvement process and specifications may change without notice. Please check specifications are current at time of placing order.

**Component colours may be subject to slight variations through pigmentation changes and batch runs. Please notify the sales team in advance of any concerns.

**High volume GRP manufacturing is not generally a process that is undertaken in sterile, laboratory conditions. Our moulding equipment is in heavy use throughout the year, producing hundreds of parts per month. Small inclusions, mould marks and light abrasion/discolouration of some areas may be found on some surfaces and are generally unavoidable from part to part. We have documented tolerances to work within and no part will be used if the general appearance or assembly is unreasonably compromised. If you have any concerns or questions, please consult the sales team

***Telephones are for illustrative purposes only and are not included.
